BLADE
Rugged Pan-Tilt for Two Imaging Sensors and Radar
Manufacturer
DAT-CON
Slovenia
- Product Category
- Support Equipment · Pan-Tilt Systems
- Product Maturity
- Fielded
- Operational Applications
- Base Protection
- Critical Infrastructure Protection
- Border Security
- Operational Regions
- Europe
Description

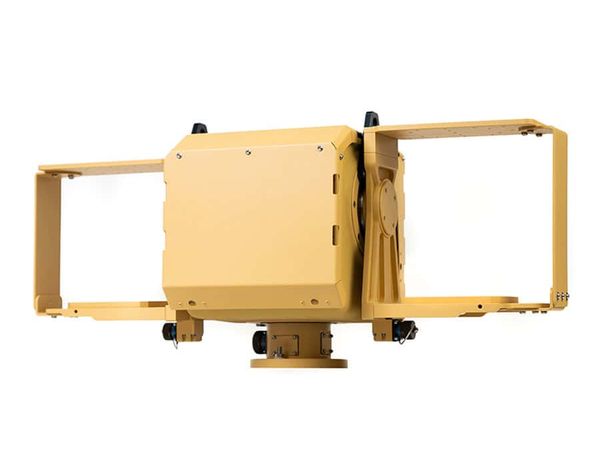

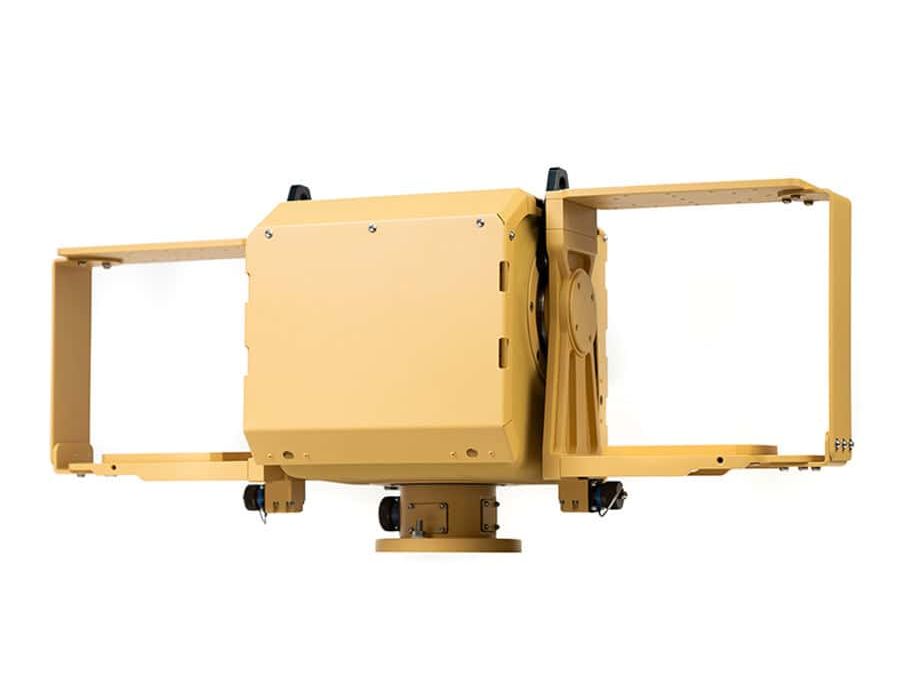

BLADE is a rugged pan-tilt system that can host two imaging systems on its side wings, as well as a radar weighing up to 50 kg on the top of the unit with a separate rotator. The system also incorporates a military-grade IMU and gyro for stabilization in demanding environments. The IP66-rated unit can be controlled via 10/100 Base-T Ethernet, RS-232, or RS485/422.
Specifications
| Dimensions | 444 x 848 x 324 mm |
|---|---|
| Weight | 46.5 kg |
| Power | 24 – 48 VDC, 250 W max |
| Load Capacity | 2x30 + 50 kg |
| Torque | 80 Nm |
| Pan Axis | Range: 360° Continuous |
| Tilt Axis | Range: ± 90° |
| Accuracy | 0.002° |
