Neutralization Systems · RF Jammers
PITBULL 101 Drone Jammer
Wearable RF Jammer
Manufacturer
MyDefence
Denmark
- Product Category
- Neutralization Systems · RF Jammers
- Product Maturity
- Fielded
- Operational Applications
- VIP & Event Protection
- Mobile Force Protection
- Operational Regions
- Europe
Description

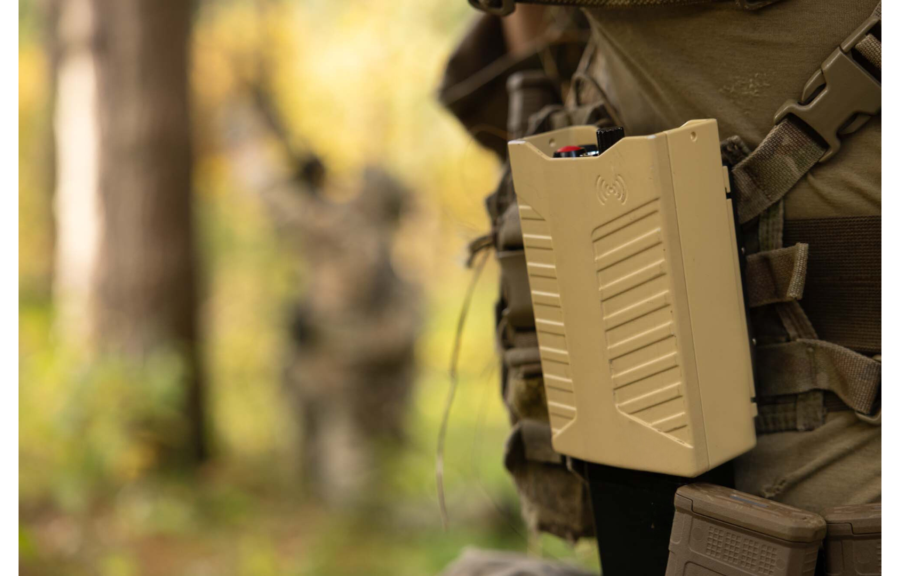

The Pitbull is a lightweight, wearable anti drone jammer that neutralizes drone threats once detected by the Wingman. Specifically designed for dismounted troops, special forces, and security teams on foot, it disrupts both drone control signals and GNSS navigation signals, providing comprehensive jamming coverage. It offers up to 1000 meters of jamming range and supports both manual operation and automatic activation triggered by the Wingman. Weighing only 1330 g including battery, the Pitbull is user-friendly and intuitive, requiring minimal training. Fully integrated with ATAK, allowing the Pitbull to be remotely controlled and share jamming data in real time for better team coordination and mission success.
Specifications
| Weight | 1330 g / 47 oz |
|---|---|
| Supported Frequency Bands | 1.6 GHz (GNSS), 2.4, 5.2, 5.8 GHz |
| Coverage Sector | Horizontal 60º & Vertical 60º |
| Dimensions | 243 x 90 x 75 mm (Including Battery) |
| Battery Endurance | 20 hours in Standby Mode |
| Battery Endurance | 2 hours in Continuous Active Mode |
