Detection Systems · Radar
DR 100 for C-UAS
3D Drone Detection Radar
Manufacturer
KONGSBERG
Norway
- Product Category
- Detection Systems · Radar
- Product Maturity
- Fielded
- Operational Applications
- Airport Protection
- Base Protection
- Critical Infrastructure Protection
- Operational Regions
- Europe
Description

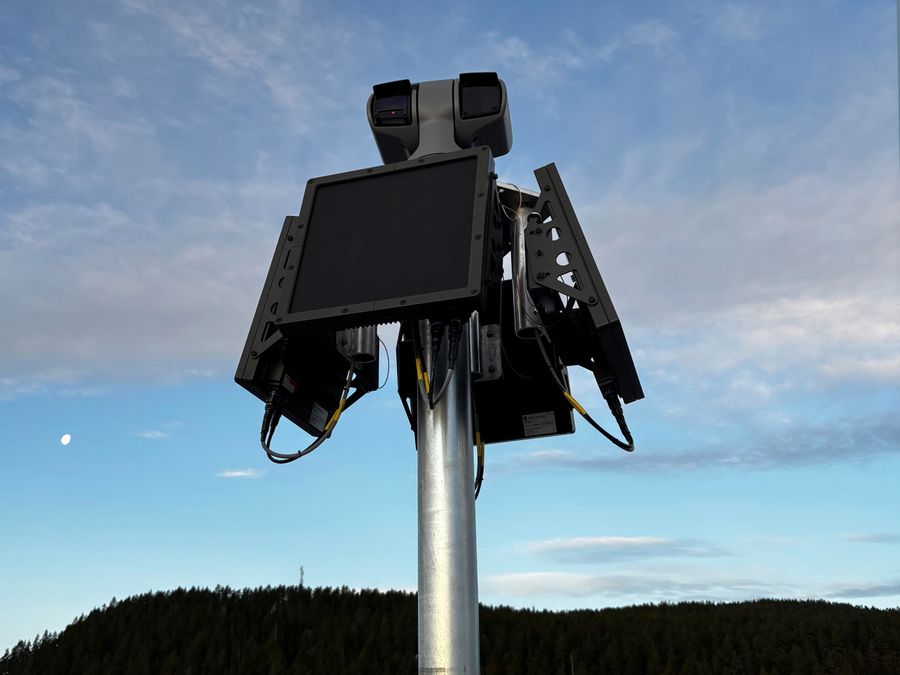

The DR 100 is a purpose-built Drone (UAV) Detection Radar providing tracking and classification out of the radar panel. It is a small and low-weight, non rotating, solid-state panel-based radar. The radar is made to recognize commercially available, low-cost and small UAVs (Unmanned Aerial Vehicle) that can easily be rebuilt to carry small payloads, potentially causing large damage. In recent years, smaller commercially available drones have been used in conflict areas as well as around public arrangements and critical infrastructure, both to support good and bad intentions. The Kongsberg DR 100 addresses both the security and defence market.
Specifications
| Frequency Band | X-band |
|---|---|
| Range Accuracy | < 0.5 m |
| Azimuth Accuracy | < 0.5° |
| Elevation Accuracy | < 1.0 |
| Simultaneous Targets | > 100 |
| Instrumented Range | 4.3 km |
| Dimensions | 400 x 400 mm |
| Power Consumption | 50 - 70 W |
| Elevation Coverage | 90° |
| Azimuth Coverage | 140° |
