Detection Systems · Radar

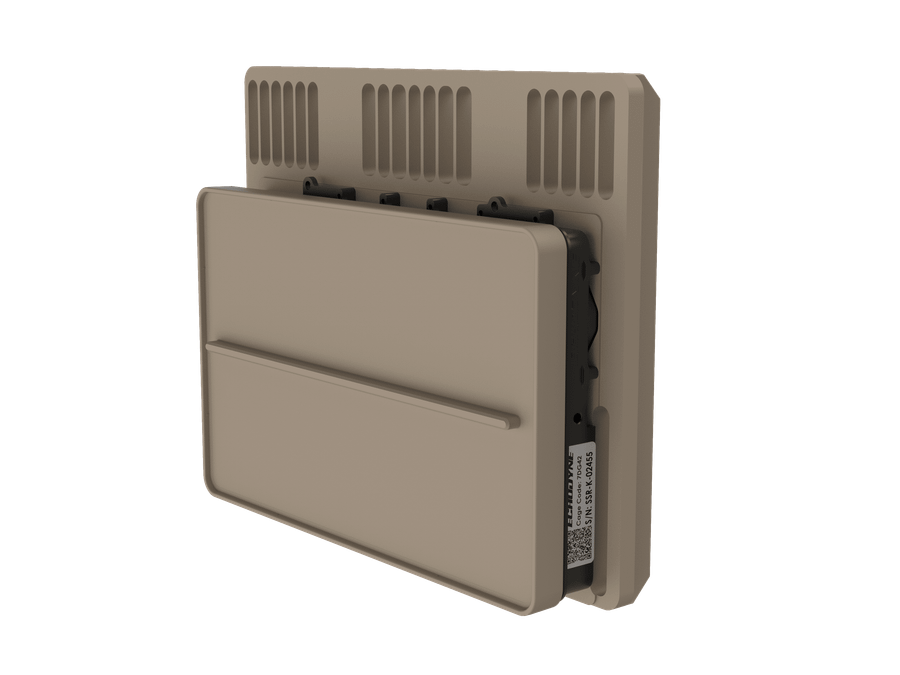

EchoGuard
4D Surveillance Radar
Manufacturer
Echodyne
United States
- Product Category
- Detection Systems · Radar
- Product Maturity
- Fielded
- Operational Applications
- Airport Protection
- VIP & Event Protection
- Base Protection
- Critical Infrastructure Protection
- Maritime & Port Security
- Operational Regions
- North America
- Europe
- Middle East
- Asia-Pacific
Description
EchoGuard is a low-SWaP ESA radar that delivers uncompromising performance. It's beam-steering accuracy and high refresh rate mean better optical tracking for eyes on object or fire control solutions. Able to detect and track small drones from 1km, EchoGuard is ideal for airspace surveillance around key assets and sensitive facilities.
Specifications
| Frequency Band | K-Band |
|---|---|
| Tracking Update Rate | 10 Hz |
| Simultaneous Targets | Up to 20 |
| Instrumented Range | 6 km |
| Detection Range (0.01 m² RCS) | 1 km |
| Weight | 1.25 kg |
| Dimensions | 16.3 cm x 20.3 cm x 5.7 cm |
| Azimuth Coverage | 120° |
| Elevation Coverage | 80° |
