Detection Systems · Radar
Retinar FAR-AD
Drone Detection Radar
Manufacturer
Meteksan Savunma
Türkiye
- Product Category
- Detection Systems · Radar
- Product Maturity
- Combat Proven
- Operational Applications
- Base Protection
- Critical Infrastructure Protection
- Operational Regions
- Europe
- Asia-Pacific
Description

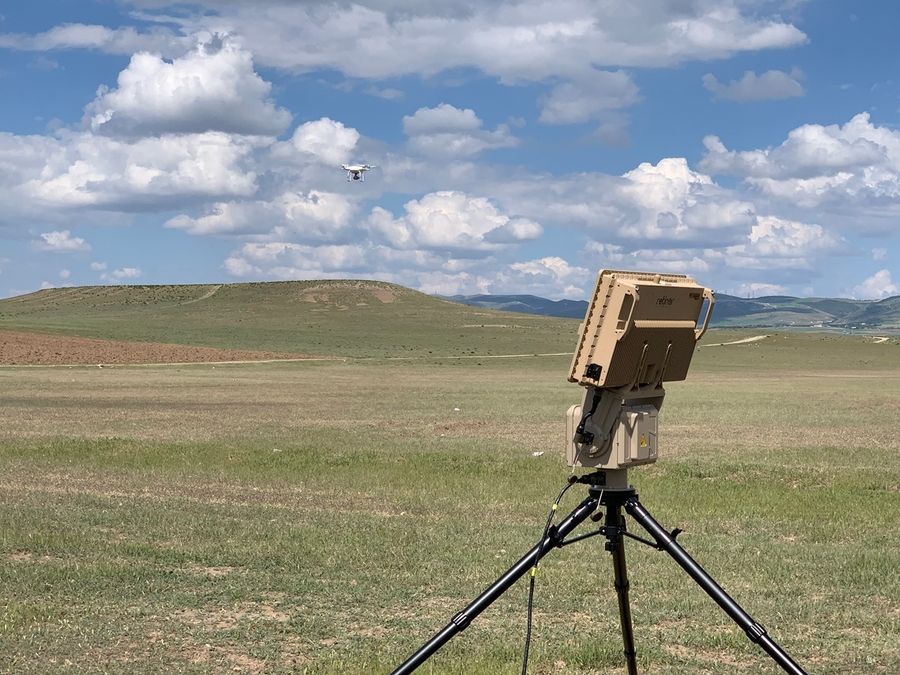

Retinar FAR-AD Drone Detection Radar, developed by Meteksan Defence, is a radar system to enable security against mini/micro unmanned aerial vehicles. Retinar FAR-AD can automatically scan large areas and low altitude air space as the primary sensor of the security forces against drones. Retinar FAR-AD provides effective protection against low altitude drones, with it is 40-degree elevation angle. The targets followed by Retinar FAR-AD user interface software provide the location, distance, speed, and direction information to the operator. Target Analysis Mode, enables the classification of targets. Retinar FAR-AD Drone Detection Radar operates on Ku band frequency with low RF output. It has an advanced technology solid-state radio frequency design and digital radar architecture and incorporates special algorithms and waveforms for Low-Slow-Small (LSS) target detection and can detect, track, and classify moving objects. Micro-Doppler signature analysis capability is used for target identification which provides crucial information during low visible weather conditions such as foggy environment.
Specifications
| Frequency Band | Ku-Band |
|---|---|
| Scan Speed | 4, 8, 16, 30 rpm (selectable) |
| Detection Range (0.01 m² RCS) | 3 km |
| Minimum Range | <100 meters |
| Instrumented Range | 9.3 km |
| Azimuth Beamwidth | 2° |
| Azimuth Coverage | 360° or Sector (Selectable) |
| Power Consumption | <400 Watt |
| Maximum Target Speed | 240 km/hour |
| Elevation Beamwidth | 40° |
